Scraper conveyor / conveyor

Скребковый конвейер или скребковый транспортер

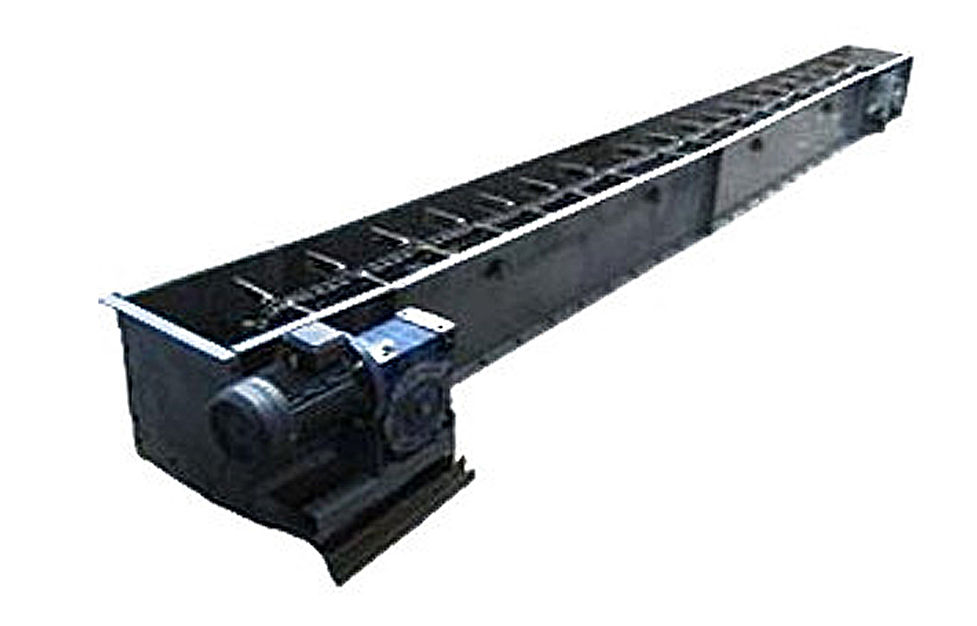

Scraper conveyor

Conveyors, scraper conveyors such as TSC, UTF, with a capacity of 0.5 to 500 tons per hour. For all industries and agriculture.

Scraper conveyor (scraper conveyor) - a continuous transporting device in which the movement of bulk goods is carried out along a fixed chute  - pan with the help of scrapers fixed on one or more pulling chains and immersed in a layer of bulk cargo. At the request of the customer, the bottom of the conveyor can be lined with caprolon or UHMWPE (ultra-high molecular weight polyethylene).

The scraper conveyor is one of the most common types of transporting machines; it is used to move bulk, incl. lumpy cargo. The size of the pieces is from 0.01mm (10 microns - dust, powder) to 400-500mm (40-50cm - pieces the size of a watermelon). It is used in industrial production, in mines and mines, in agriculture. The load moves along the pan in a horizontal plane or at an angle of up to 45-50 ° to the horizon.

Our scraper conveyors are mobile, portable, rotary and stationary. Stationary machines are used to move a large amount of material over a distance of 30 to 70 m, and mobile and portable machines are used to move a small amount of material over a distance of 3 to 20 m.
The width of the scraper conveyor usually ranges from 120 to 500mm and determines the conveyor capacity. The chain speed is from 0.01 to 0.7 m / s, which determines its performance in tons per hour.
The main purpose of a stationary conveyor is to move materials horizontally up to 70m and / or in an inclined direction with an angle of inclination up to 45-50 degrees.

We manufacture conveyors, scraper conveyors such as TSC, UTP, with a capacity of 0.5 to 500 tons per hour. For all industries and agriculture. The length of the conveyor, depending on the needs of the customer, can be from 0.5 to 70 m. An excellent option for transporting any bulk (both wet and dry), lumpy and lumpy materials.
All documents. Technical passport, operation manual, assistance in the preparation of project documentation.

The warranty is 12 months. After the end of the warranty - discount service.

Specifications

Basic Attributes

Manufacturer Energotek

Country of origin Ukraine

Type of transported cargo Loose

Conveyor type according to the presence of a traction mechanism With a traction mechanism

Conveyor type with traction mechanism Chain

Type of conveyor on the load-carrying mechanism Scraper

The principle of moving the load on the conveyor On a fixed chute

Warranty period12 (months)

Ordering information

Packing method: Without packing. Shipment to the customer's vehicle.
